Female threaded three pieces ball valve

Female threaded three pieces ball valve

Female threaded ball valves are suitable for use on pipelines of medium or low pressure to turn off or swith on pipeline medium. Operation manners are in general of manual, and pneumatic or electric actuators are available.Based on design structures, the valves get divided into three pieces, two pieces, and one piece types.

Main connection dimension and weight unit: mm
SIZE 1/2" 3/4" 1" 1/4" 1/2" 2" 2/2" 3" 4"
PORT 9.6 15.9 22.2 28.5 34.9 47.5 60.2 72.9 97.4
L 75 90 100 110 125 150 190 220 270
D 25.0 25.0 50.4 50.4 50.4 63.9 77.4 90.0 118.9
S 2.024 2.24 43.60 43.60 43.60 56.30 70.60 83.30 110.30
H 64 67 83 89 100 108 150 161 180
T1 - - 2.85 2.85 2.85 2.85 2.85 2.85 2.85
T2 3.63 3.63 4.75 - - - - - -
E 125 125 140 140 200 200 250 250 290

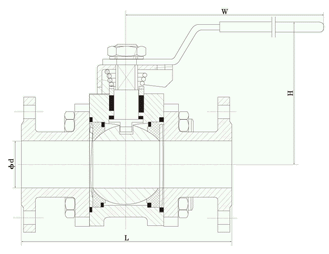

Drawing
