Y-Pattern Globe Valve 800Lb

Y-Pattern Globe Valve 800Lb

Standard Material Specifications

NO. Part Name CS to ASTM AS to ASTM SS to ASTM
Type A105 Type F22 Type F304(L) Type F316(L)
1 Body A105 A182 F22 A182 F304(L) A182 F316(L)
2 Disc A276 420 A276 304 A276 304(L) A276 316(L)
3 Stem A182 F6 A182 F304 A182 F304(L) A182 F316(L)
4 Gasket Corrugated SS + graphite SS + PTFE
5 Bonnet A105 A276 304 A276 304(L) A276 316(L)
6 Bonnet Bolt A193 B7 A193 B16 A193 B8 A193 B8M
7 Stem Packing Flexible Graphite PTFE
8 Gland A276 410 A182 F304(L) A182 F316(L)
9 Gland Flange A216 WCB A351 CF8
10 Handwheel A197
11 Nameplate SS
12 H.W.Nut A194 2H A194 4 A194 8 A194 8M
13 Yoke Nut A276 410
14 Gland Nut A194 2H A194 4 A194 8 A194 8M
15 Gland Eyebolt A193 B7 A193 B16 A193 B8 A193 B8M
16 Pin A276 420 A276 304
Suitable Medium W.O.G.etc W.O.G.etc HNO3,CH3OOH etc
Suitable Temperature -29 425  -29 550  -29 180
Note: Other materials are available upon request.
Dimensions (mm) and Weights (Kg)
NPS 1/2~ 3/4~ 1~ 1-1/4~ 1-1/2~ 2~
L 98 111 120 140 140 170
H(OPEN) 175 215 254 305 305 365
W 100 125 160 160 180 200
Weights 5 6.3 7.6 9.8 13.8 14.0

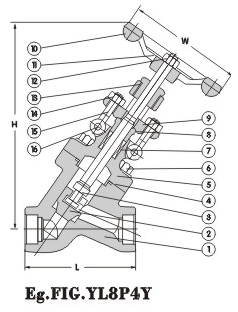

Drawing
