Class 150~1500 Cast Steel Fixed Ball Valve

Class 150~1500 Cast Steel Fixed Ball Valve

Bolted cover,Two-piece or three-piece Body,fixed Ball
Full or Reduced bore,Blowout Proof Stem
Fire safe and Anti static
Dual seat with injection and drain & outlet
ASTM A216 WCB,A351 CF8,A351 CF8M,
A351 CF3,A351 CF3M,A351 CN7M
Standards compliance
Design and Manufacture: API 6D
Face to face(end to end): API 6D
Flanged connection:2~~24~to ANSI B16.5
Fire-safe: API 607,API 6FA
Butt welded end: ANSI B16.25
Test and inspection: API 6D

Materials
NO. Part name Material
21 Drain plug Carbon steel/stainless steel
20 Worm gear/actuator Manufacture's standard
19 Antistatic device Stainless steel
18 Constact spring 17-7PH/inconel-Alloy
17 O-ring Viton
16 Ball guide bush Carbon steel/SS
15 Cover washer PTFE/NYLON
14 Thrust washer Graphite PTFE/NYLON
13 Stem CS+Plated/stainless steel
NO. Part name WCB LCB
12 Socket head screw A193 Gr B7 A320 Gr L7
11 Stud and nut A193 Gr B7/A194 Gr 2H

A320 Gr L7/A194 Gr 4

10 Gasket PTFE/SPIRAL WOUND PTFE/SPIRAL WOUND
09 Packing PTFE/Graphite Graphite/PTFE
08 Seat ring PTFE/RPTFE PTFE/RPTFE
07 Sealing plate A216 Gr WCB A352 Gr LCB
06 Stem retainer A216 Gr WCB A352 Gr LCb
05 Ball guide A105N+Nip A182 F304
04 Ball seat A182 F304 A182 F304
03 Ball A182 F6a A182 F304
02 R-body A216 Gr WCB A352 Gr LCB
01 L-body A216 Gr WCB A352 Gr LCB
NO. Part name CF8 CF8M
12 Socket head screw A193 Gr B8 A193 Gr B8
11 Stud and nut A193 B8/A194 8

A320 B8M/A194 B8

10 Gasket PTFE/SPIRAL WOUND PTFE/SPIRAL WOUND
09 Packing GRAFOIL GRAFOIL
08 Ball seat PTFE/RPTFE PTFE/RPTFE
07 Sealing plate A315 Gr CF8 A315 Gr CF8M
06 Stem retainer A315 Gr CF8 A315 Gr CF8M
05 Ball guide A315 Gr CF8 A315 Gr CF8M
04 Seat ring A182 F304 A182 F316
03 Ball A315 Gr CF8 A315 Gr CF8M
02 R-body A315 Gr CF8 A315 Gr CF8M
01 L-body A315 Gr CF8 A315 Gr CF8M
CLASS 150~1500 CAST STEEL FIXED BALL BALVE
Dimensions
Class 150
Size inch 6 8 10 12 14 16 18 20 24
L-RF mm 394 457 533 610 686 762 864 914 1067
L1-BW mm 457 521 559 635 762 838 914 991 1143
L2-RTJ mm 406 470 546 622 698 725 876 927 1079
B mm 152 203 254 305 337 687 438 489 591
H mm 270 315 360 410 425 475 525 590 695
K mm 300 300 400 400 600 600 600 600 750
WT Kg 110 160 320 448 567 850 1050 1350 1750
Dimensions
Class 300
Size inch 6 8 10 12 14 16 18 20 24
L,L-RF~BW mm 403 502 568 648 762 838 914 991 1143
L2-RTJ mm 419 518 584 664 778 854 930 1010 1165
B mm 152 203 254 305 337 387 438 489 591
H mm 285 345 380 345 450 495 570 615 710
K mm 300 300 400 400 600 600 600 750 750
WT Kg 128 210 345 560 780 1020 1200 1625 2285
Dimensions
Class 600
Size inch 2 2-1/2 3 4 6 8 10 12 14 16 18 20 24
L,L-RF~BW mm 292 330 356 432 559 660 787 838 889 991 1092 1194 1397
L2-RTJ mm 295 333 359 435 562 664 791 841 892 994 1095 1200 1407
B mm 51 64 76 102 152 203 254 305 337 387 438 489 591
H mm 190 230 265 295 300 355 415 455 505 515 600 640 735
K mm 250 250 300 300 400 400 400 600 600 600 750 750 750
WT Kg 34 40 45 98 200 395 555 840 1015 1220 1350 2080 2745
Dimensions
Class 900
Size inch 2 2-1/2 3 4 6 8 10 12 14 16 18 20
L,L-RF~BW mm 368 419 381 457 610 737 838 965 1029 1130 1219 1321
L2-RTJ mm 371 422 384 460 613 740 841 968 1038 1140 1323 1334
B mm 51 64 76 102 152 203 254 305 324 375 425 473
H mm 210 250 285 280 360 455 510 525 595 650 685 695
K mm 250 300 300 400 400 600 600 600 750 750 750 800
WT Kg 45 50 72 130 235 495 690 1050 1350 1750 2300 2850
Dimensions
Class 1500
Size inch 2 2-1/2 3 4 6 8 10
L,L-RF~BW mm 368 419 470 546 706 832 991
L2-RTJ mm 371 422 473 549 711 841 1000
B mm 51 64 76 102 146 184 241
H mm 230 260 290 305 370 470 520
K mm 300 300 400 400 600 600 750
WT Kg 52 74 98 144 320 695 960

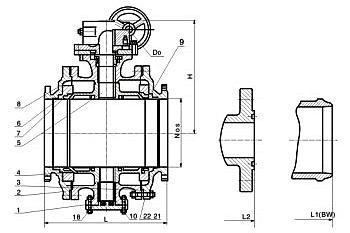

Drawing
